Metrics usage for Platform Observability

Essential knowledge

Authors:

Kirill Gaiduk, Yulia Andreyanova

Changed on:

19 June 2024

Overview

This document is intended to describe to implementers which Metrics are available within the Fluent Big Inventory product and what kind of data they provide to achieve Platform Observability.

Pre-requisites:

Key points

  • Metrics are available for all customers with Fluent Order Management and Fluent Big Inventory.
  • Metrics data is captured, uploaded, and stored in the Metrics workspace.
  • Metrics data is fetched and visualized for the Platform Observability enablement.

What is Metrics?

Metrics are numerical measurements that are:

  • Captured by instrumenting the source code.
  • Sent through a telemetry data manager to be stored in a monitoring system.
  • Saved with time series data format that refers to recording changes over time.
  • Visualized to provide visibility of the Platform operational data and allow to monitor and observe Platform / Inventory availability and orchestration insights.


Metrics vs. Events

An Event is typically used to log a specific activity of what has happened within the system.

While the Metrics (or Metrics API) themselves do not capture events, they provide a capability to reflect an aggregated view for a range of captured events, which include:

  • Cross-retailer events,
  • Events initiated through GraphQL mutations (create events),
  • Cross workflow events,
  • User action events via the sync endpoint,
  • Events instigated through the async endpoint,
  • Scheduled events.

These Metrics are associated with the following endpoints:

  • POST /api/v4.1/event/async
  • POST /api/v4.1/event/sync
  • POST /api/v4.1/job/{jobId}/batch

Types

The following Metric types are currently available:

  • Counter
    A cumulative Metric representing a monotonically increasing counter. The value can only increase or be reset to zero upon process restart.
  • Gauge
    Represents a single numerical value that can vary up and down.
  • Histogram
    Samples observations (e.g., request durations, response sizes) and counts them in configurable buckets. Offers insights into data distribution.

Labels

Labels are saved as a part of the specific Metric to enable Metrics data filtering when fetched with the Metrics API queries. Label examples include (a list of all Metrics and supported labels can be found in the Available Metrics section below):

  • account_id
    Fluent account identifier.
  • retailer_id
    Fluent retailer identifier (within the account).
  • event_name
    Describes the event name.
  • entity_type
    Classifies the entity being referred to in the event.
  • source
    Specifies the origin of the event or the medium through which the event was channelled.
  • le (specific to Histograms)
    `le`
    stands for "less than or equal to". It labels the buckets in a histogram and represents the upper bound of each bucket.

Available Metrics

The following Metrics are currently available:

Fluent API Metrics

Name

Type

Labels

Description

core_event_received_total

Counter

account_id, retailer_id, event_name, entity_type, source

The number of events received by the Fluent platform.

core_event_last_received_seconds

Gauge

account_id, retailer_id, event_name, entity_type, source

The last timestamp of events received by the Fluent platform.

Orchestration Engine (Rubix Core/Batch) Metrics

Name

Type

Labels

Description

rubix_event_received_total

Counter

account_id, retailer_id, event_name, entity_type, source

The number of events received by the orchestration engine (Rubix) from the queue or direct HTTP API.

rubix_event_inflight_latency_seconds

Histogram

account_id, retailer_id, event_name, entity_type, source

The amount of time an event stays in the internal queue before Rubix receives it.

rubix_event_inflight_latency_seconds_sum

Counter

account_id, retailer_id, event_name, entity_type, source

Total accumulated time of events in the internal queue before Rubix receives them.

rubix_event_inflight_latency_seconds_count

Counter

account_id, retailer_id, event_name, entity_type, source

The number of observed events in the internal queue before Rubix receives them.

rubix_event_inflight_latency_seconds_bucket

Counter

account_id, retailer_id, event_name, entity_type, source, le

Bucketed counts of event latencies in the internal queue.

rubix_event_runtime_seconds

Histogram

account_id, retailer_id, event_name, entity_type, source, status

The amount of time Rubix takes to execute an event.

rubix_event_runtime_seconds_sum

Counter

account_id, retailer_id, event_name, entity_type, source, status

Total accumulated time taken by Rubix to execute events.

rubix_event_runtime_seconds_count

Counter

account_id, retailer_id, event_name, entity_type, source, status

The number of observed events Rubix executed.

rubix_event_runtime_seconds_bucket

Counter

account_id, retailer_id, event_name, entity_type, source, status, le

Bucketed counts of event runtimes by Rubix.

Batch Pre-Processing Metrics

The Metrics are captured from the Inventory Deduplication job:

Name

Type

Labels

Description

bpp_records_processed_total

Counter

account_id, run_id, stage, first_batch_received, deduplication_finished

The total amount of all batch items processed by the Inventory Deduplication job.

The

`first_batch_received`
label is used to indicate the date of the first batch.

The

`deduplication_finished`
label is used to indicate the end date of the Inventory Deduplication job execution.

bpp_records_unchanged_total

Counter

account_id, run_id, stage

The total amount of batch items that were filtered out by the Inventory Deduplication job.

bpp_records_changed_total

Counter

account_id, run_id, stage

The total amount of batch items that were considered “changed” and sent to Rubix by the Inventory Deduplication job.

bpp_last_run_timestamp_seconds

Gauge

account_id, run_id, stage, status

The timestamp for when the given Batch Pre-Processing operation has been completed.

Status:

`SUCCESS`
,
`ERROR`
.

Inventory Feeds Metrics

The Metrics are captured from the Inventory Data Loading job:

Name

Type

Labels

Description

feed_sent_total

Counter

account_id, feed_ref, run_id, data_type

The total number of records exported by the Inventory Data Loading job, split by data type.

Data type:

`INVENTORY_POSITION`
,
`INVENTORY_CATALOGUE`
,
`VIRTUAL_POSITION`
,
`VIRTUAL_CATALOGUE`

feed_last_run_timestamp_seconds

Gauge

account_id, feed_ref, run_id, status

The timestamp for when the Inventory Data Loading job completed.

Status:

`SUCCESS`
,
`ERROR`
,
`NO_RECORDS`
.
`NO_RECORDS`
refers to the scenario where the job is triggered but no records have been updated, so there is nothing to export from the feed.

Metrics Capturing

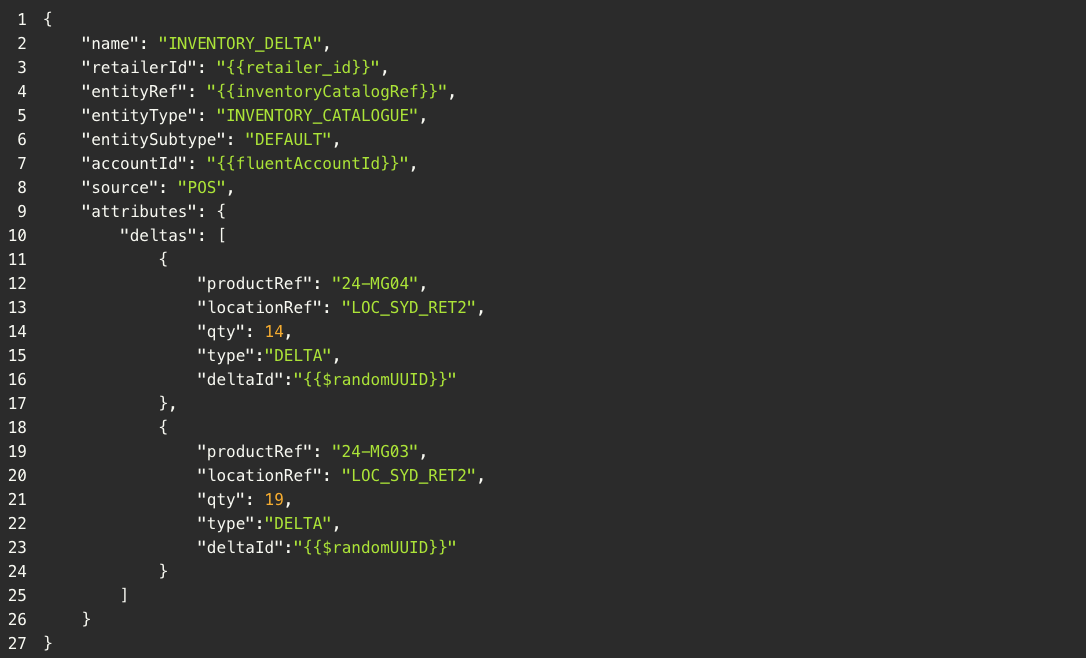

The Metrics capturing is a foundation and a starting point for building a reliable data source to enable Platform Observability. The following example for Inventory Update end-to-end flow (via the customer’s request based on Point Of Sale (POS) data) is intended to serve as a reference for Metrics Capturing Process.

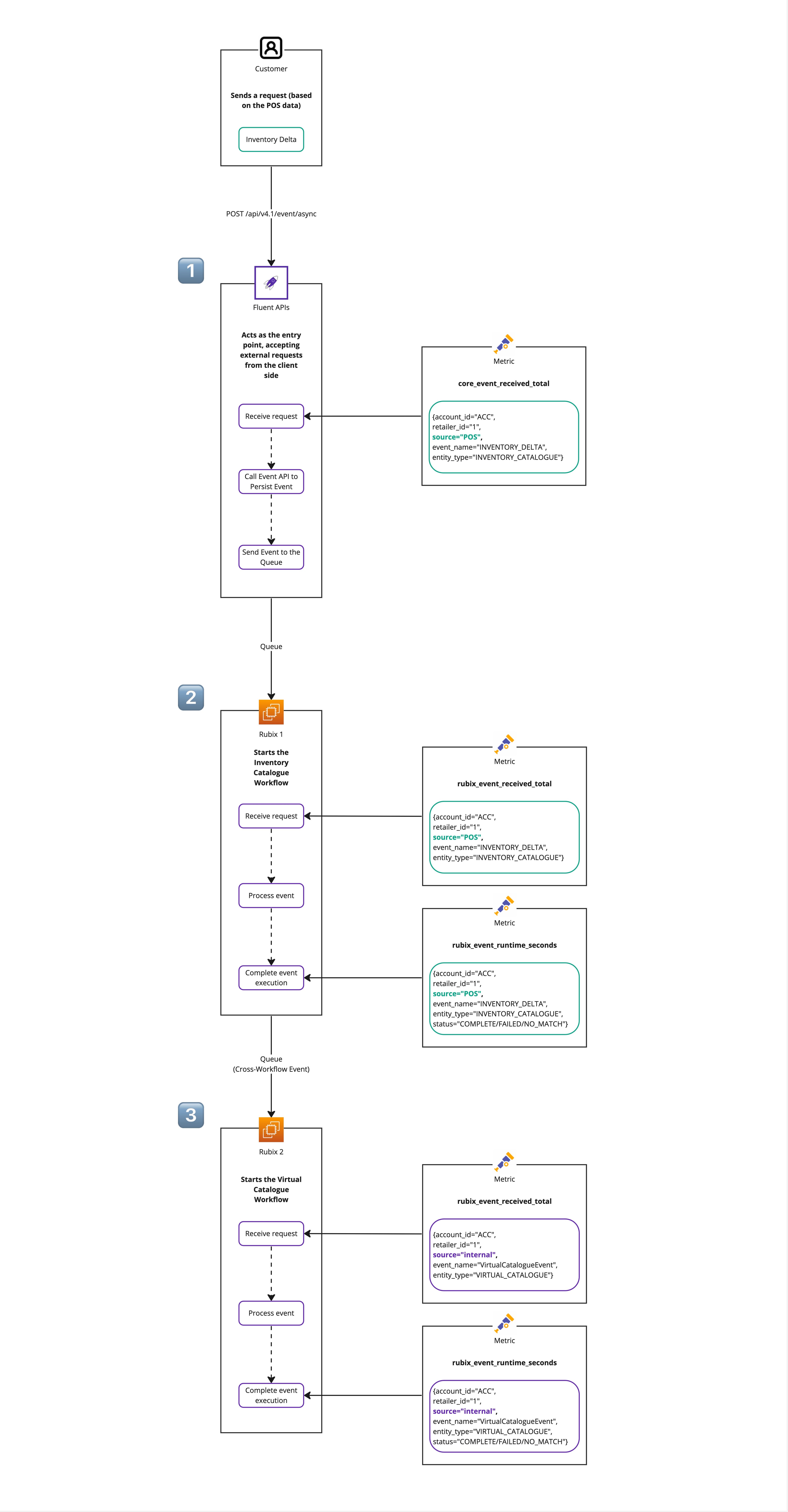

Explanation through an Example

No alt provided

The correspondent Metrics (the number of events received and their runtime) are logged upon:

  • Receiving of an Inventory Update customer’s request (based on the POS data) by Fluent Platform.
  • Starting the Inventory Catalogue Workflow for proceeding with the latest Inventory updates (e.g. reflecting a sale transaction) to ensure up-to-date On Hand quantities.
  • Starting the Virtual Catalogue Workflow for updating Available to Sell quantities.
