OMX Design System Foundations

Foundations Overview

This sections lays down the foundation for the overarching design theme of the Fluent Commerce platform. In order to create visually clean and user friendly interfaces, there are recommendations and guidelines on how the overarching Fluent design theme elements, such as Color and typography, should be used.

Color Palette

All Fluent Web Apps come with a built-in color palette that can be used for controlling the color system and theming.

These default colours includes:

• Variants of Primary and Secondary colours
• Contextual messaging colors for alerts
• Additional UI colors for things such as; backgrounds, surfaces, dividers, and buttons.

The following colours can be referenced by name in places that would otherwise expect a colour hex code.

1palette: {
2    primary: {
3      light: '#effbff',
4      main: '#00A9E0',
5      dark: '#027ECE',
6      contrastText: '#FFFFFF'
7    },
8    secondary: {
9      light: '#FBF2FF',
10      main: '#552AA8',
11      dark: '#26005C',
12      contrastText: '#FFFFFF',
13    },
14    text: {
15      secondary: '#53565A',
16      hint: '#999',
17    },
18    background: {
19      default: '#FFF',
20    },
21    mystique: {
22      colours: {
23        structure: {
24          border: '#D4D6D8',
25        },
26        compliance: {
27          success: '#4CAF50',
28          warning: '#EF8F00',
29          error: '#D23B3B',
30        },
31        constants: {
32          white: '#FFF',
33          black: '#000',
34          lightgrey: '#F5F5F5',
35        },
36      },
37    },
38  },

Primary Color Palette

The color theme displayed most frequently in your WebApp. Use these to distinguish elements within a component.

You can apply Primary Dark and Primary Light to provide more color variants.

Primary color can be used in iconography, themed text, clickable text (for e.g. links), tags, top bar and navigation bar.

Usage Examples

Secondary Color Palette

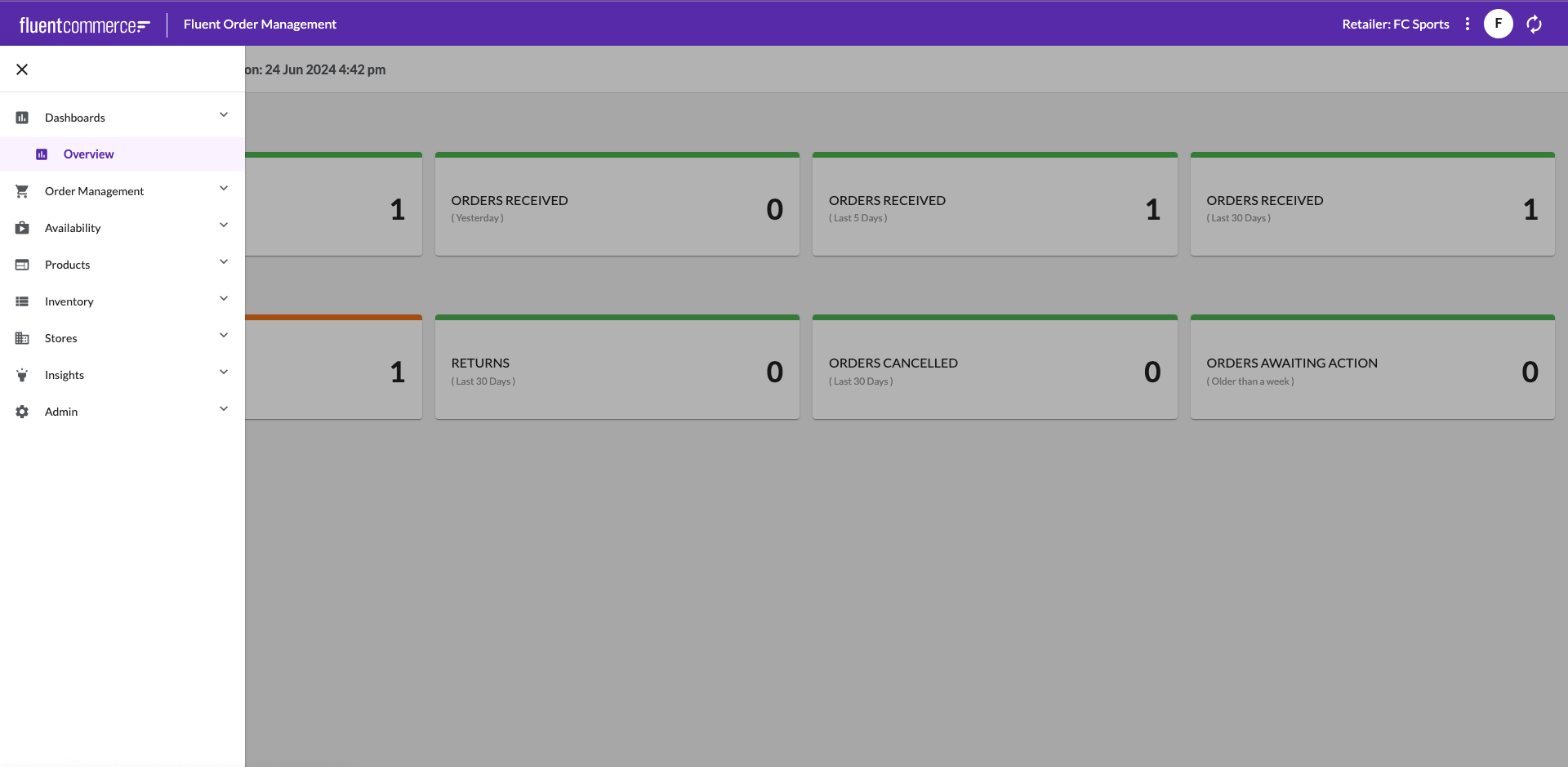

Secondary colors allow you to provide another way to distinguish your WebApps and select parts of the UI such as when hovering over a navigation menu item like below.

You can apply Secondary Dark and Secondary Light to provide more color variants.

Secondary color can be used in sliders and switches, highlighting selected text, progress bars, links and headlines.

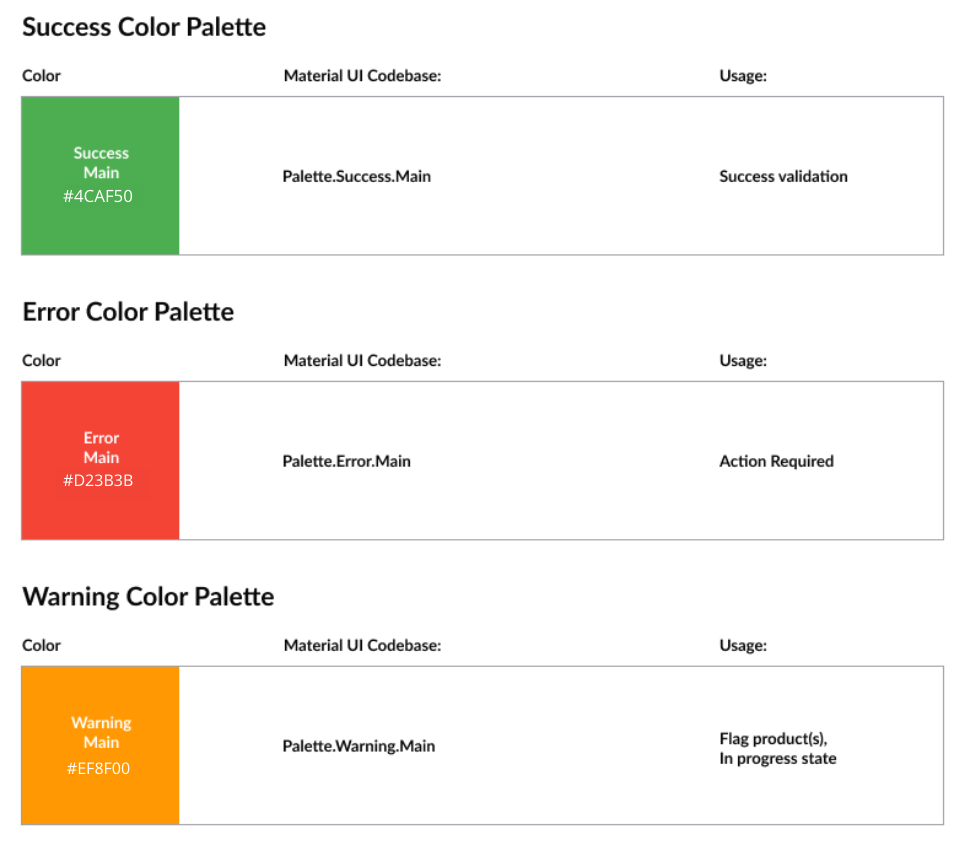

Reserved colors for Alerts

These colours are reserved for contextual messaging, they will only be applied on alert components.

Success

Used to indicate the successful completion of an action that user triggered.

Error

Used to represent interface elements that the user should be made aware of.

Warning

Used to represent potentially dangerous actions or important messages.

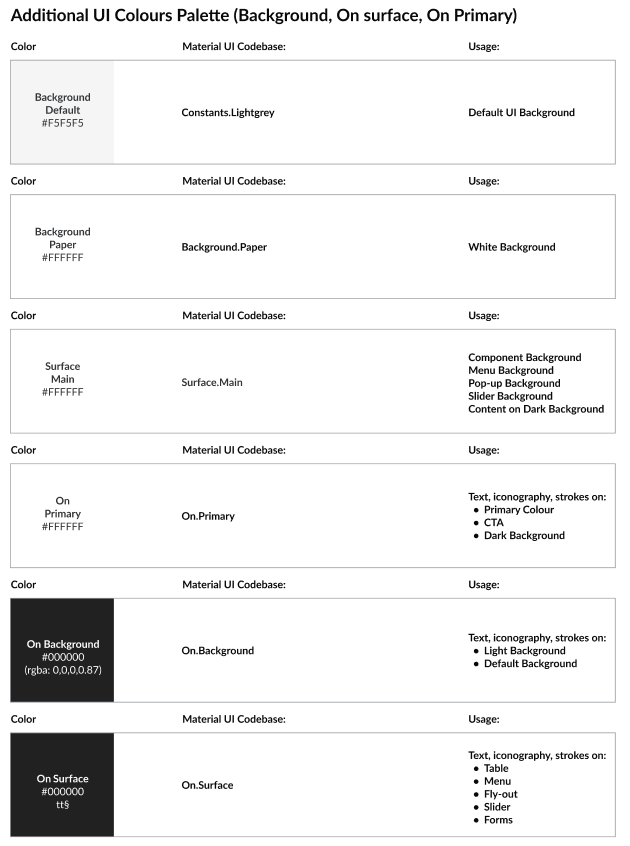

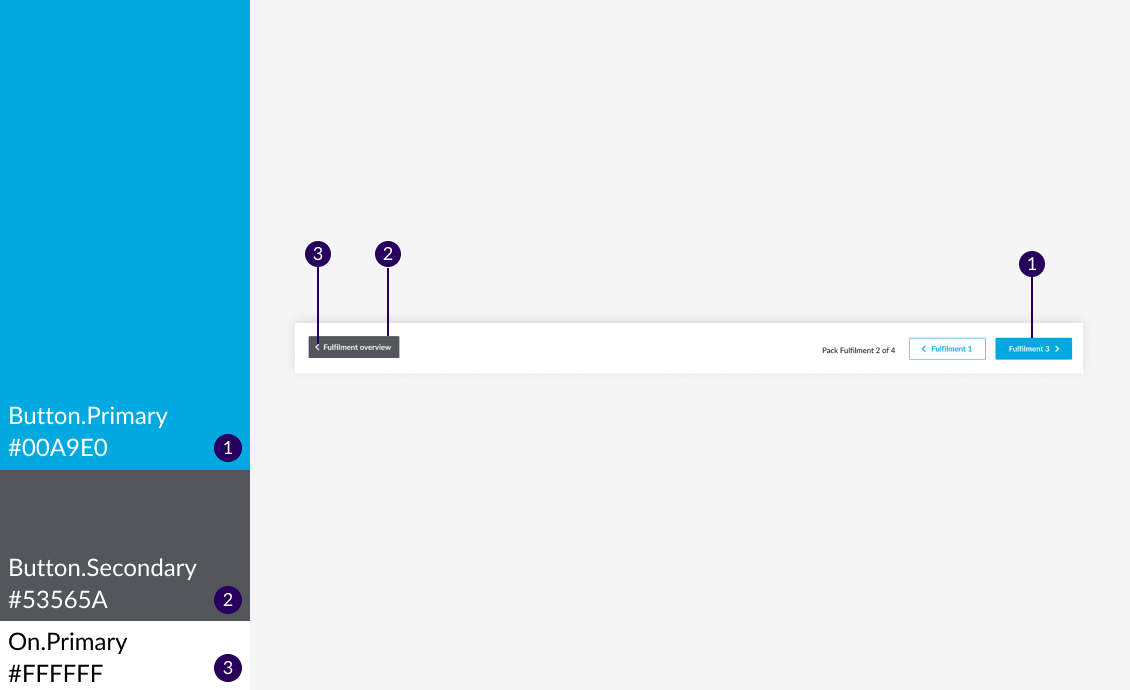

Buttons, Texts, and Dividers

UI colors are available for Buttons, Text, and Dividers. The button color should always be a color that allows white color text and iconography to be applied on the surface with strong contrast.

Background, Surface, and Text on Background/Surface

Background & Surface are usually in pure white in most scenario except the default base background color. This is to be distinguish from other components and allow other colours apply on surface or on background.

Default content color is black at 87% opacity above the background or surface.

Typography

The OMX framework provides a set of typographic styles and CSS guidelines using the font. These styles have been mapped to their usage throughout the platform.

1const TypogStyles = (theme: Theme): Record<TypographyVariant, CSSProperties> => ({
2  'heading-1': {
3    fontSize: '20px',
4    lineHeight: '24px',
5    fontWeight: 400,
6  },
7  'heading-2': {
8    fontSize: '20px',
9    lineHeight: '24px',
10    fontWeight: 700,
11  },
12  'heading-3-title': {
13    fontSize: '16px',
14    lineHeight: '24px',
15    fontWeight: 400,
16    textTransform: 'capitalize',
17  },
18  'heading-3-uppercase': {
19    fontSize: '16px',
20    lineHeight: '24px',
21    fontWeight: 400,
22    textTransform: 'uppercase',
23  },
24  'heading-4': {
25    fontSize: '14px',
26    lineHeight: '20px',
27    fontWeight: 700,
28  },
29  'heading-5': {
30    fontSize: '13px',
31    lineHeight: '20px',
32    fontWeight: 700,
33    textTransform: 'uppercase',
34  },
35  'heading-6': {
36    fontSize: '14px',
37    lineHeight: '16px',
38    fontWeight: 400,
39    color: theme.palette.text.hint,
40  },
41  'body-1': {
42    fontSize: '14px',
43    lineHeight: '24px',
44    fontWeight: 400,
45  },
46  'body-2': {
47    fontSize: '16px',
48    lineHeight: '24px',
49    fontWeight: 700,
50    color: theme.palette.text.secondary,
51  },
52  'small-text-1': {
53    fontSize: '12px',
54    lineHeight: '16px',
55    fontWeight: 400,
56    color: theme.palette.text.hint,
57  },
58  'small-text-1-bold': {
59    fontSize: '12px',
60    lineHeight: '16px',
61    fontWeight: 700,
62    color: theme.palette.text.hint,
63  },
64});

Fluent Commerce Typography Theme
